Description

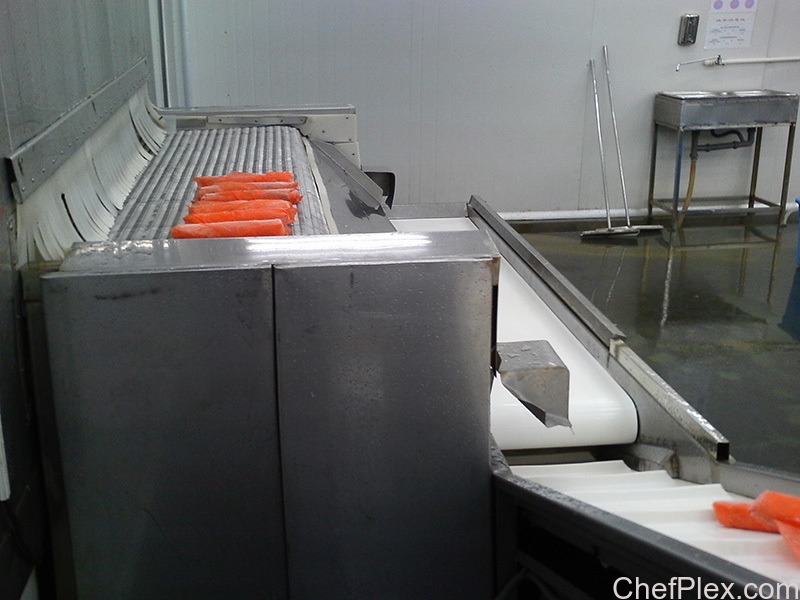

The conveying belt of the GSD model net belt type tunnel Quick Freezing Equipment adopts stainless steel wire mesh belt. According to different varieties, the products to be frozen can be put in the tray or directly on the conveying belt, and be rqpidly frozen by the wind blowing from the top to the bottom or by the side wind. The quick-freezing machine of the model has the widest processing range.
It is suitable for various pepared foods ( such as bun, dumpling, fish ball and etc.), aquatic products and especially varieties unsuitable for fluidized freezing. The optional range for freezing time is within 12~100min.
0.15T/H Tunnel Freezer
Dimensions 9500*2500*2480mm
Product model GSD-150
Installed power 7.1kw
Voltage 380V, 50Hz
Feeding temperature +15 °C
The discharge center temperature -18 ° C
The air temperature inside the library -33 ~ -35 ° C
The amount of cooling 30KW (working conditions: +35 ° C / -42 ° C)
Processing capacity 0.15T/h
Insulation storage body Double-sided stainless steel polyurethane insulation storage body, combined structure
If you wanna know more information about GuanFeng machine , please feel free to contact us by click https://www.gf-machine.com/product/quick-freezing-equipment/gsd-tunnel-freezer-2.html
